PET bottle washing line

Product Description

Workflow

01
Bale breaker
02
Twin screw loader
03

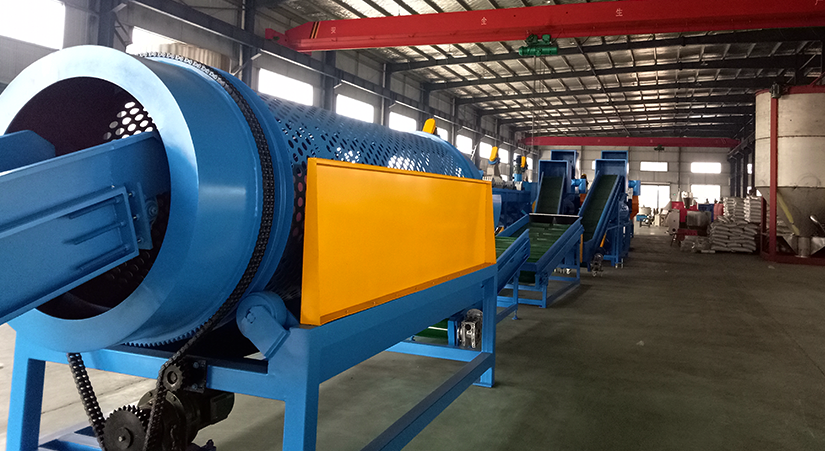

Rotary screen
04
Belt conveyor
05
Label remover
06
Pre-washer
07
Sorting system
08
Manual sorting system
09
Crusher
10
Floating washer
11
Screw loader
12
Hot washer
13
High speed friction washer
14
Dewatering
15
Round floating washer
16
Floating washer
17
Dewatering
18
Drying system
19
Bottle label seperator
20
Compacting packing

Main Equipment Description

•

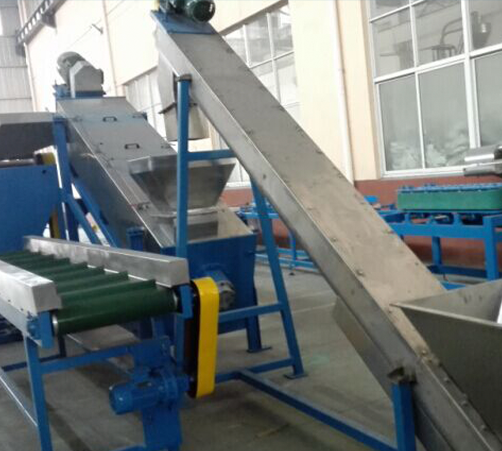

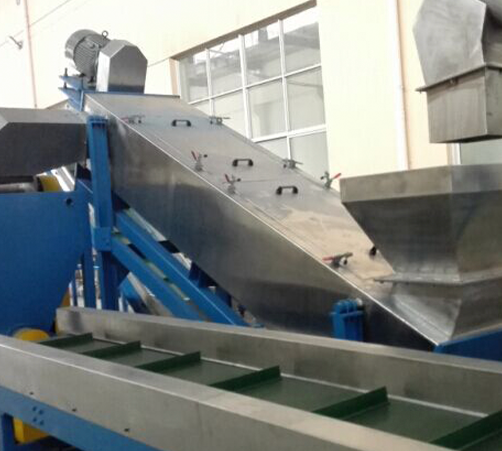

  Belt conveyor
  The belt conveyor is for transporting all kinds of plastic bottles to crusher,it is automatically working. Frequency control.
•
  Bale breaker
  The bale breaker is used for openning the PET bottles’ bale before crushing and washing.
•

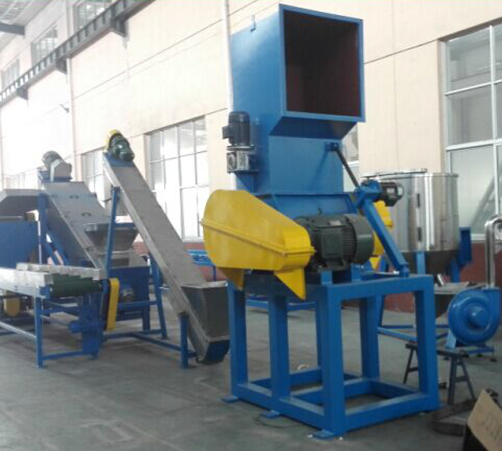

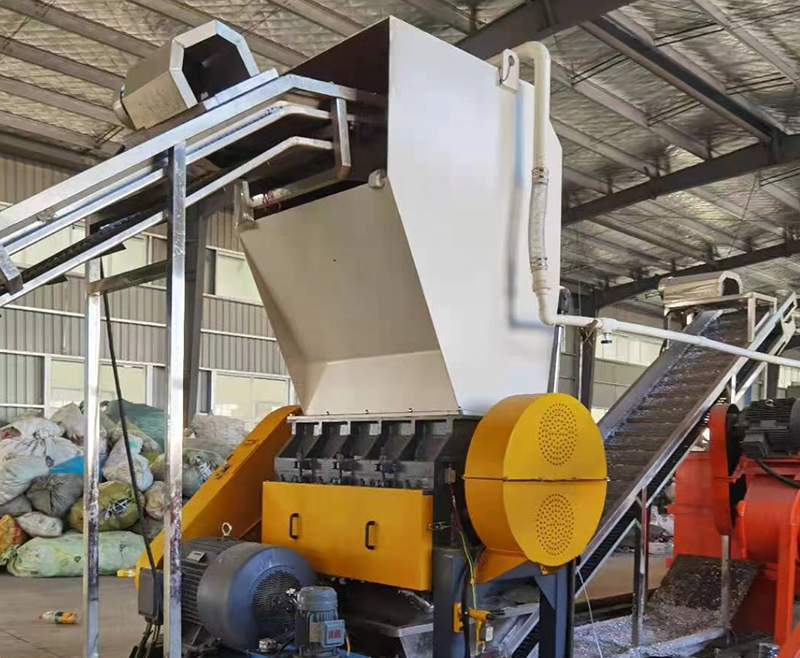

  Crusher
  The crusher will crush PE film into small sizes. Large PE Film will reduced into small pieces.
•

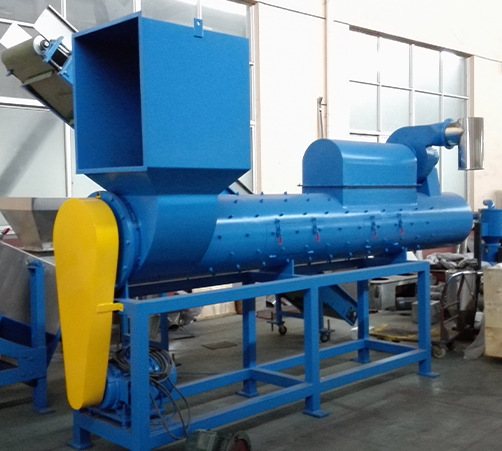

  Label remover
  The label remover can remove the plastic label by using the air suction and blade friction . This machine is mainly used to remove the PVC label and OPP label and other label from the bottle.
•

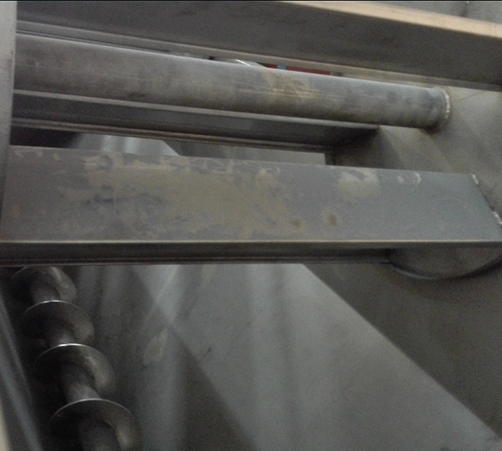

  Floating Washer
  The floating washer can seperate the metal and washing the crushed PE film. Parts touch with materials made by stainless steel.
•
  Dewatering Machine
  The dewatering machine will shake off the film moisture. Dewater effective : ≧95%

Specifications

Machine Video
